sleeper replacer SB60

Download PDF

Specification

  • Weight: 1050kg
  • Height: 1000mm
  • Depth: 1300mm
  • Blade width: 2700mm
  • Clamp force: 6000kg
  • Flywheel capacity: 295dNm
  • Network Rail product acceptance number: PA05/04237

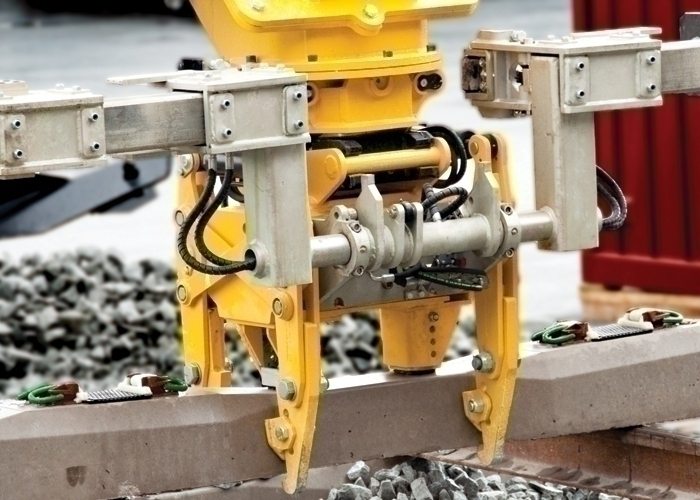

Replace sleepers safety and efficently with the Rosenqvist Sleeper Replacer

Thanks to special design features that allow the Sleeper Replacer to tilt and rotate, this high performance machine can change sleepers from the middle or side of the track as required.

It is designed to move effectively and to recess the ballast, making the Sleeper Replacer more versatile and increasing output, whilst still offering a cost effective and safe working solution.

This productive equipment is compatible with most types of sleepers and is available in various track gauges to provide maximum flexibility.

Optional Extras

Add the Clip Master to your Sleeper Replacer for the swift and safe installation of Pandrol Fastclips. Buckets are also available for removing ballast in wet locations.
