Specifications

  • Weight Approx. 2800kg (6173lb) including tilt rotator
  • Width: 2750mm
  • Length: 3005-5985mm (118.3-235.6in)
  • Height Standard with tilt rotator: 825mm, 1375mm, 1525mm with tilt rotator & bracket (150mm)
  • Lifting capacity: Max 3600kg (7937lb)
  • Number of sleepers: Max 8pcs
  • Sleeper distances: 765mm with 8 sleepers. With fewer sleepers the distance can be extended further (customer adjustment)
  • Performance: Any suitably excavator up to 150m/h (410ft/h). Any suitably front end loader up to 100m/h (328ft/h)
  • Electrics: Negative ground 24 volt DC
  • Hydraulic: The hydraulic service shall be connected to the carrier Two-way hydraulic function, 2 hoses. Drain line – 1 hose
  • Recommended oil flow: 100 L/min (26.4 gal/min) min 50 L/min (13.2 gal/min) max 150L/min (39.6gal/min)
  • Recommended oil pressure: 180 bar (2611psi) min 150 bar (2175psi) max 250 bar (3625 psi)
  • Default set pressure: Swing motor 120 bar (1740 psi)
  • Main pressure: 190 bar (2756 psi)
  • Spreading pressure: 20 bar (290 psi)
  • Item number: 5003460

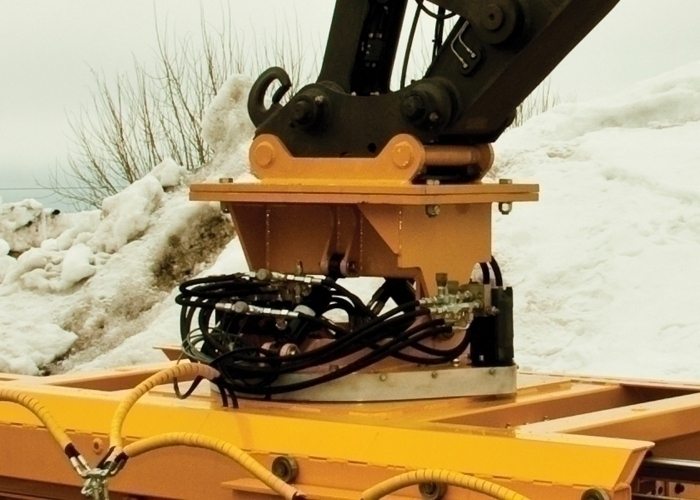

Designed and manufactured for efficient positioning of concrete sleepers. It utilises standard couplings on heavy excavators and loaders

Up to eight adjacent sleepers can be laid simultaneously from an accompanying supply. Lifted into position, their correct placement are ensured by a precision gauging hydraulic system that spreads the sleepers to the desired distance up to maximum 762mm (30in). (With fewer sleepers the distance can be extended further).

The Sleeper Layer SL850 can also be used to gather sleepers for storage in case they do not lie close to each other. Meticulously developed, extensively tested and utilised with high productivity and excellent results in alignment, spacing, and positioning. The Sleeper Layer SL850 is CE-certified.

Product Options

  • Can be delivered with or without tilt rotating function
  • Can be fitted with a sleeper gathering device to facilitate sleeper grab
