Specification

  • Weight, front: 400kg
  • Weight, rear: 750kg
  • Width, front: 2460mm
  • Width, rear: 1660mm
  • Gauge, std: 1435mm
  • Maximum load: 6000kg
  • Rail wheels: Run wheel 250mm

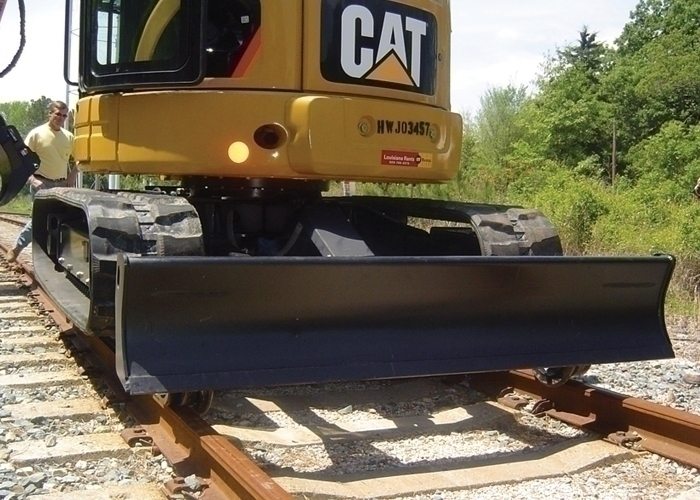

Increase stability and flexibility for excavators used on rail tracks with the Hy-Rail attachment

This innovative rail conversion kit for excavators weighing between five and nine tonnes, gives the driver full control of operations and confidence that work can be undertaken safely.

The Hy-Rail wheels are designed in accordance with UIC and its hydraulics operate without extra swivel implements. The machine is delivered with CE certification and can achieve on track speeds of up to 20km an hour (12.4mph).
