Specification

  • Weight: 950kg (2094lb)
  • Wheels: 250mm (9.8in) diam.
  • Capacity (Fastclip): Up to 25 sleepers/min
  • Electrical system: 24V DC
  • Item number: 2198 0401

Enjoy fully automated fastening with the Track Reneval Clipper from Rosenqvist.

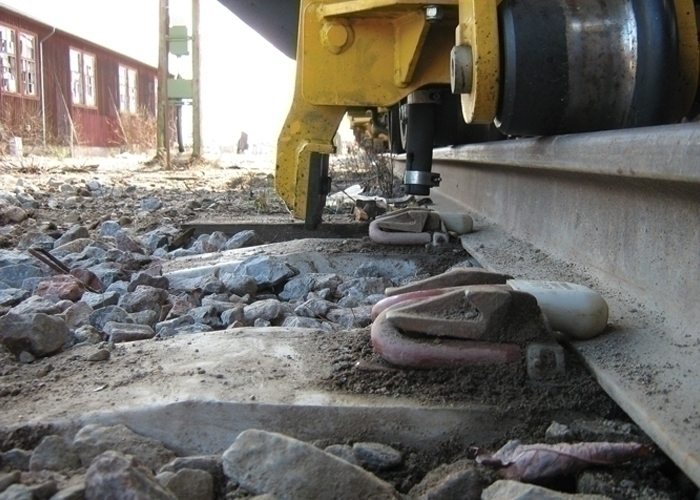

Our Track Renewal Clipper (TRC) is easy to fit to track renewal trains or equivalent and offers automatic clipping, although manual operation is possible using the control panel.

Powered by a PLC system, the machine has built in sensors detecting the clips , a rigid frame structure to which the clipping tools are fitted and a hydraulically controlled slide to enable clipping whilst in motion.
