AUTO MASTER for SB40 and SB60

Download PDF

Specification

  • Weight: 420kg/unit for SB60
  • Weight: 222 kg/unit for SB40
  • Length: 530mm
  • Width: 2530mm
  • Height: 510mm
  • Gauge, std: 1435mm
  • Max rail height: 213mm
  • Max grapple opening (over rail): 610mm
  • Installation measurement: 330-445mm
  • Installation force @ 190 bar: 40kN
  • Hydraulics: Recommended hydraulic flow: 20-50litre/min
  • Recommended oil pressure: 180 bar

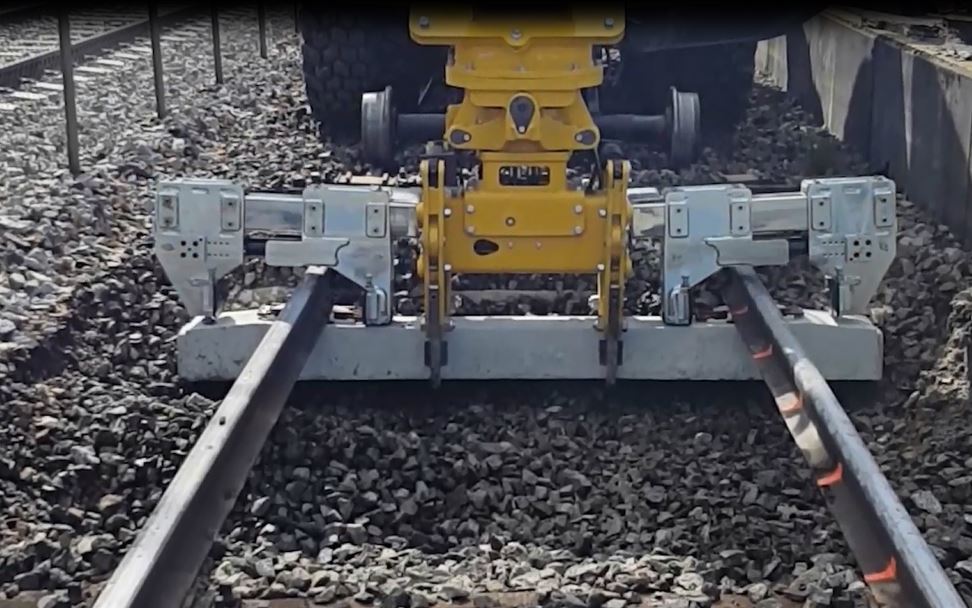

Clip new sleepers onto the rail with just one press of a button

Minimise the number of people needed for clipping during re-sleeper operations by using the Rosenqvist Auto Master.

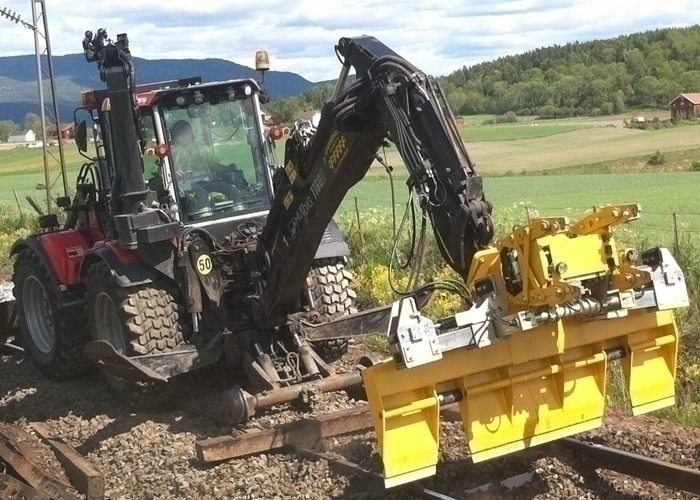

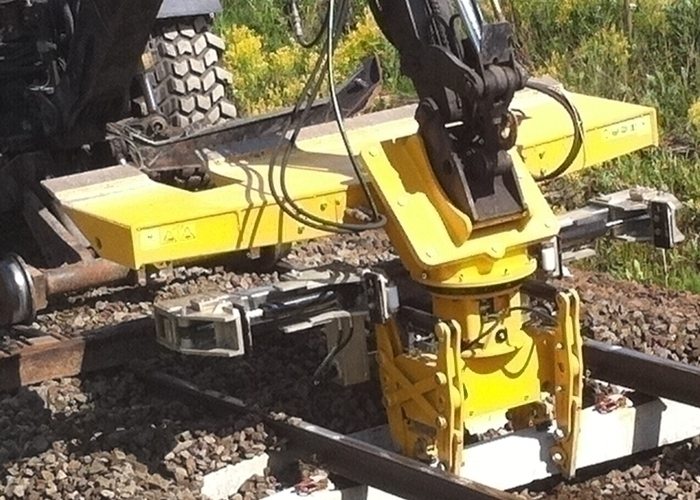

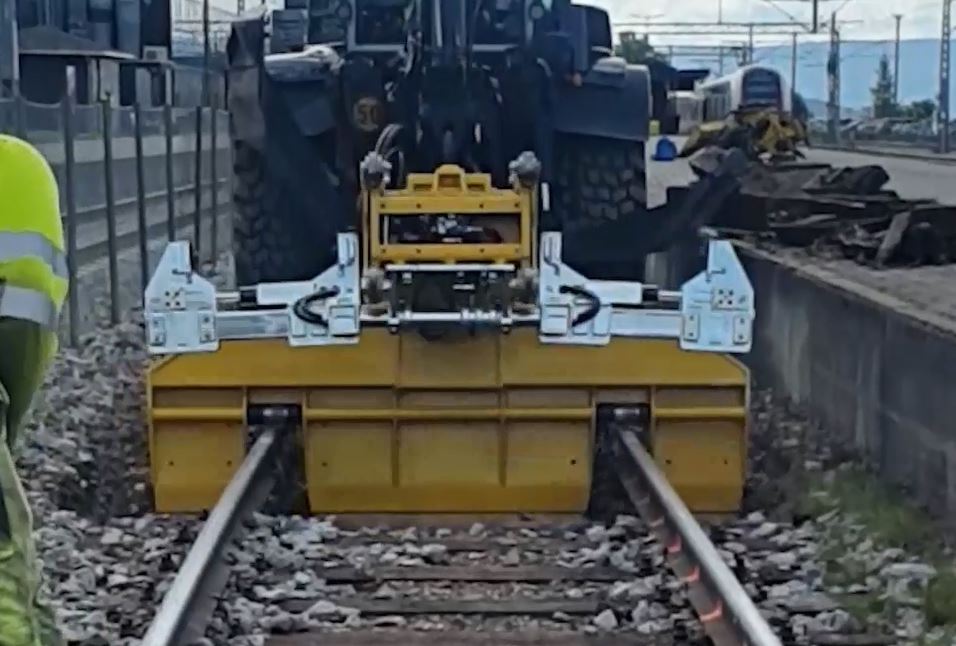

Developed as an accessory for the Sleeper Replacer SB60 and SB40, the Auto Master enables Pandrol Fastclips to be fitted automatically, ensuring a higher degree of site safety by reducing the amount of staff on track.

This self centering machine can handle the normal varieties of rails and sleepers and is supplied with CE certification as standard.
