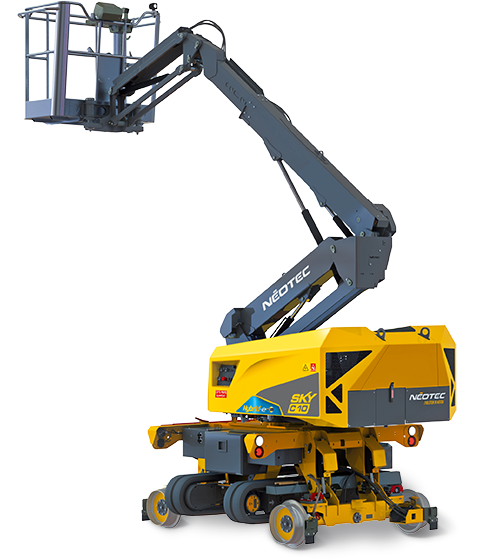

Neotec SKY C10 Power-e in Norway
Compact and agile rail- and off-road working platform with hybrid drive: 15 kW electric motor and 7 kW Yanmar diesel generator (STAGE V). Can operate in semi-enclosed areas and urban environments with zero emissions and very low noise levels. The special boom makes it possible to pass under overhead contact lines.
- Working height: up to 9.20 m
- Max horizontal outreach: 5.00 m
- Basket capacity: 230 kg (2 persons)
- Basket dimensions: 1,300 × 630 mm
- Rail operation – max working speed: 5 km/h
- Rail travel speed: up to 16 km/h
- Max rail gradient: 1/25–40% (option 60%)
- Max rail cant: 200 mm
- Rail wheel diameter: 330 mm
- Off-road speed: 0–1.5 km/h
- Max off-road gradient: up to 45% (stable ground)
- Undercarriage: rubber tracks ×2, hydrostatic drive (1 reduction motor per track)
- Drive/brake axles: ×2 – NEOTEC EPV 02.15; oscillating axle with hydraulic locks ×1
- Brakes: wet multi-disc per axle; hydrostatic/service/park
- Engine power (hybrid): 15 kW electric + 7 kW diesel generator
- Full-electric operating time: over 2 work shifts*
- Plug-in charging (full cycle): 110/220 V (16 A), approx. 4.5 h
- Charging via diesel generator (full cycle): < 3 h
- Dimensions (road mode): 3,938 × 2,385 × 1,908 mm
- Operating weight: from 2,800 kg
- Ground access height: < 300 mm
- Transport: easy to transport on road; 3.5 t trailer
Applications: OHL/contact line work, inspection, track maintenance.
