Neotec ELAN MP in Norway

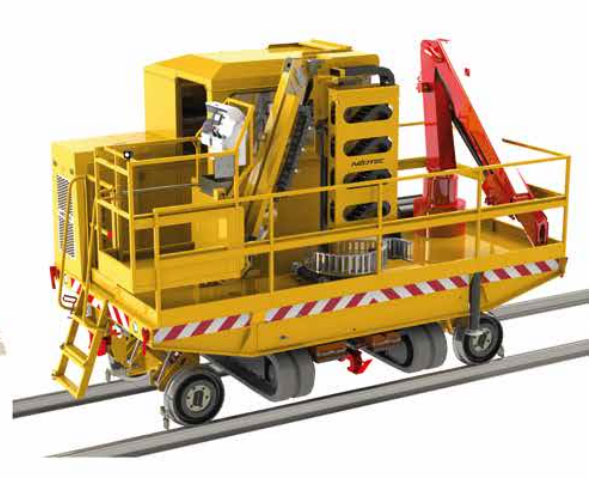

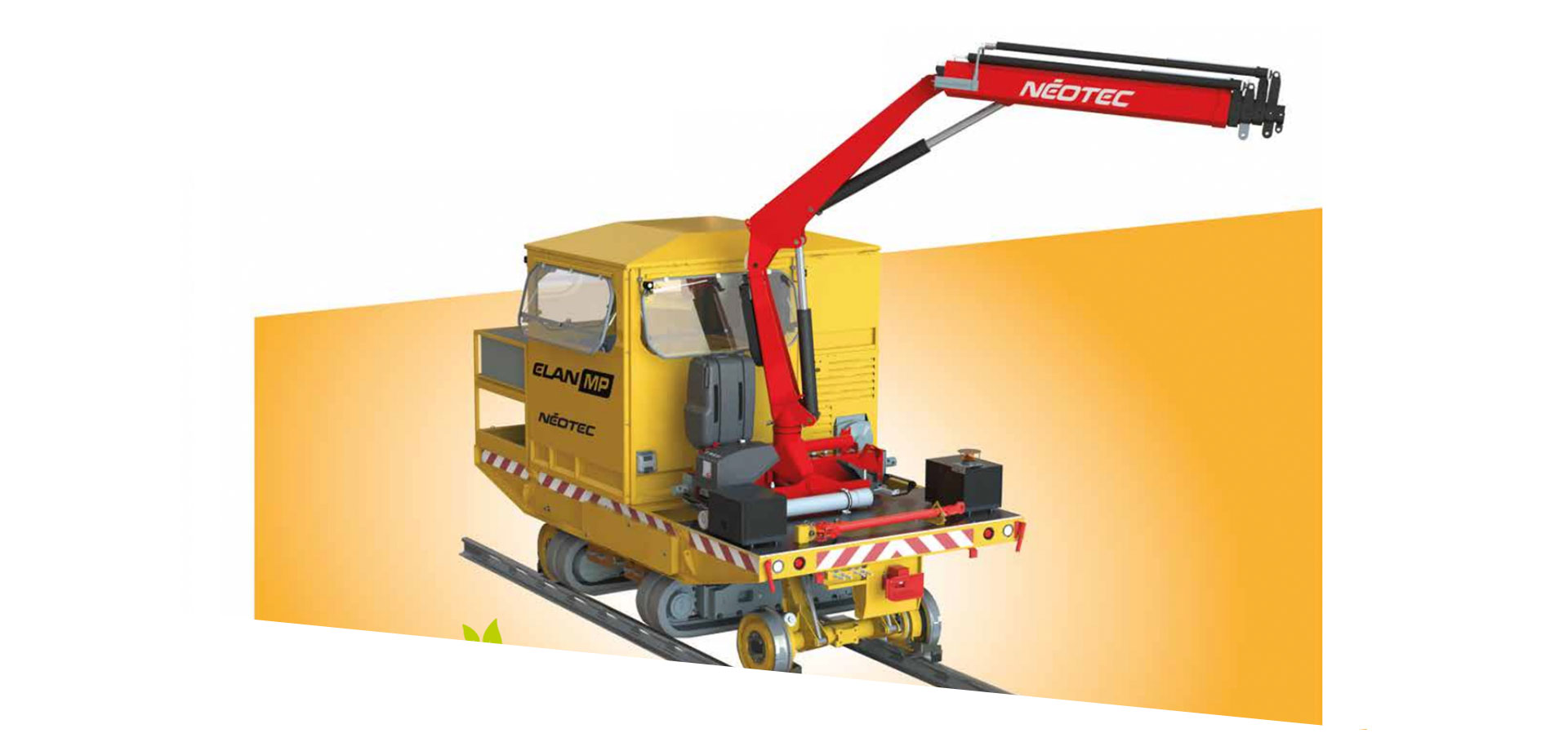

The ELAN MP is a multi-purpose rail/road machine from Neotec, developed to combine transport, handling, and work along railway tracks. With a spacious driver’s cab, flexible crane, and the option for zero-emission Green-e operation, it is an efficient tool for demanding tasks in railway projects.
- Engine: Perkins HVO Stage V diesel engine, 45 kW
- Electric motor (option): up to 30 kW Green-e
- Battery: LFP 48V/200Ah, zero-emission range >10 km*
- Electric speed: up to 20 km/h
- Charging: 110/220 V (16 A), fast charging 50% in 45 min via diesel generator
- Off-road speed: 0–1.5 km/h
- Off-road climbing ability: up to 45%
- Rail speed: inspection 5 km/h, travel 20 km/h
- Max rail gradient: 1/25 – 40 ‰ (standard), 60 ‰ (option)
- Max cant (super-elevation): 200 mm
- Dimensions: 5371 × 2530 mm
- Operating weight: up to 13,000 kg
- Options: 220/110 V 3.5 kVA genset, handling crane 7/12.5/15 ton-meter, large cab (5 persons), vertical access basket (230 kg/2 persons)
Applications: transport, lifting and handling work, as well as inspection and maintenance in railway projects.
