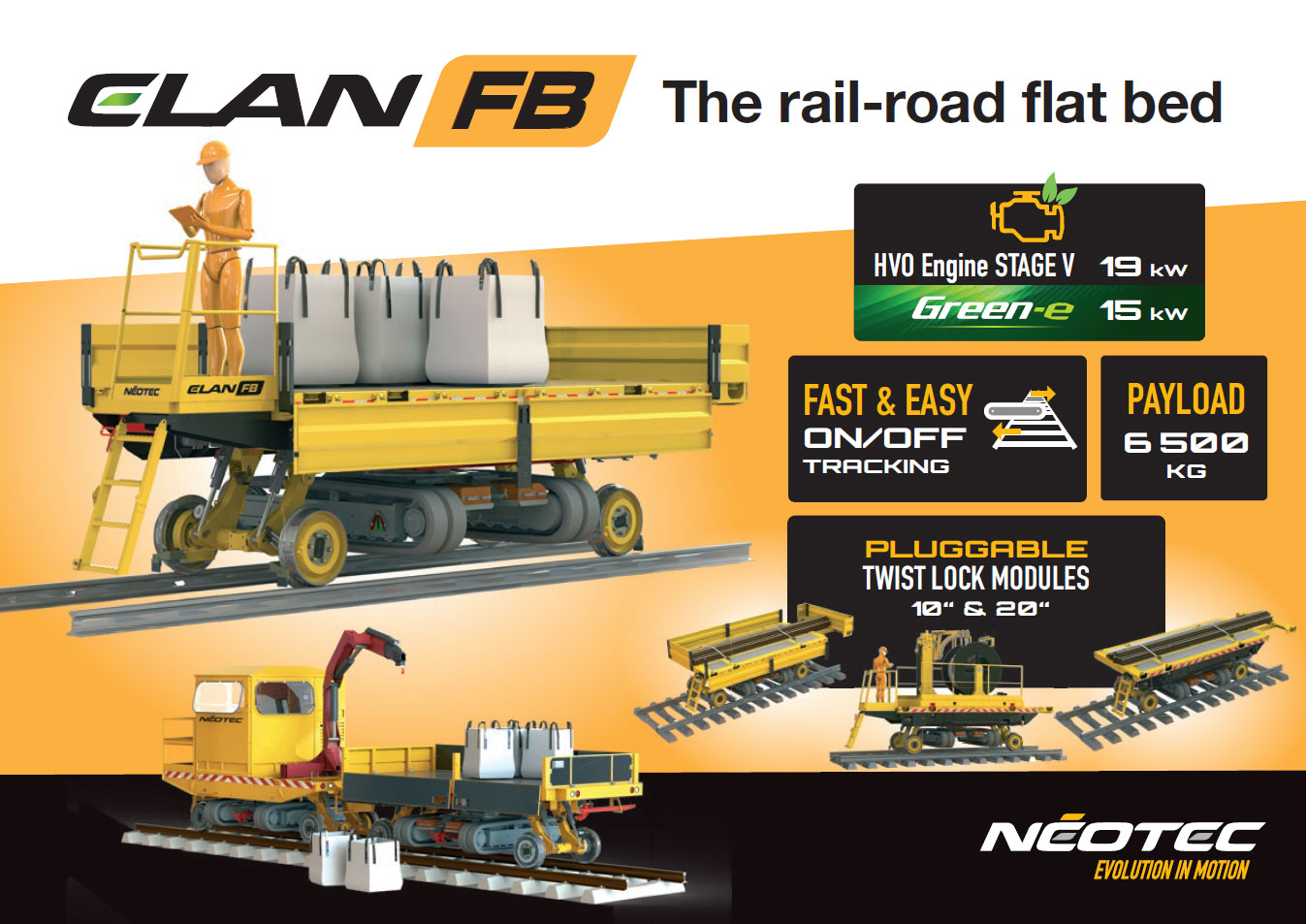

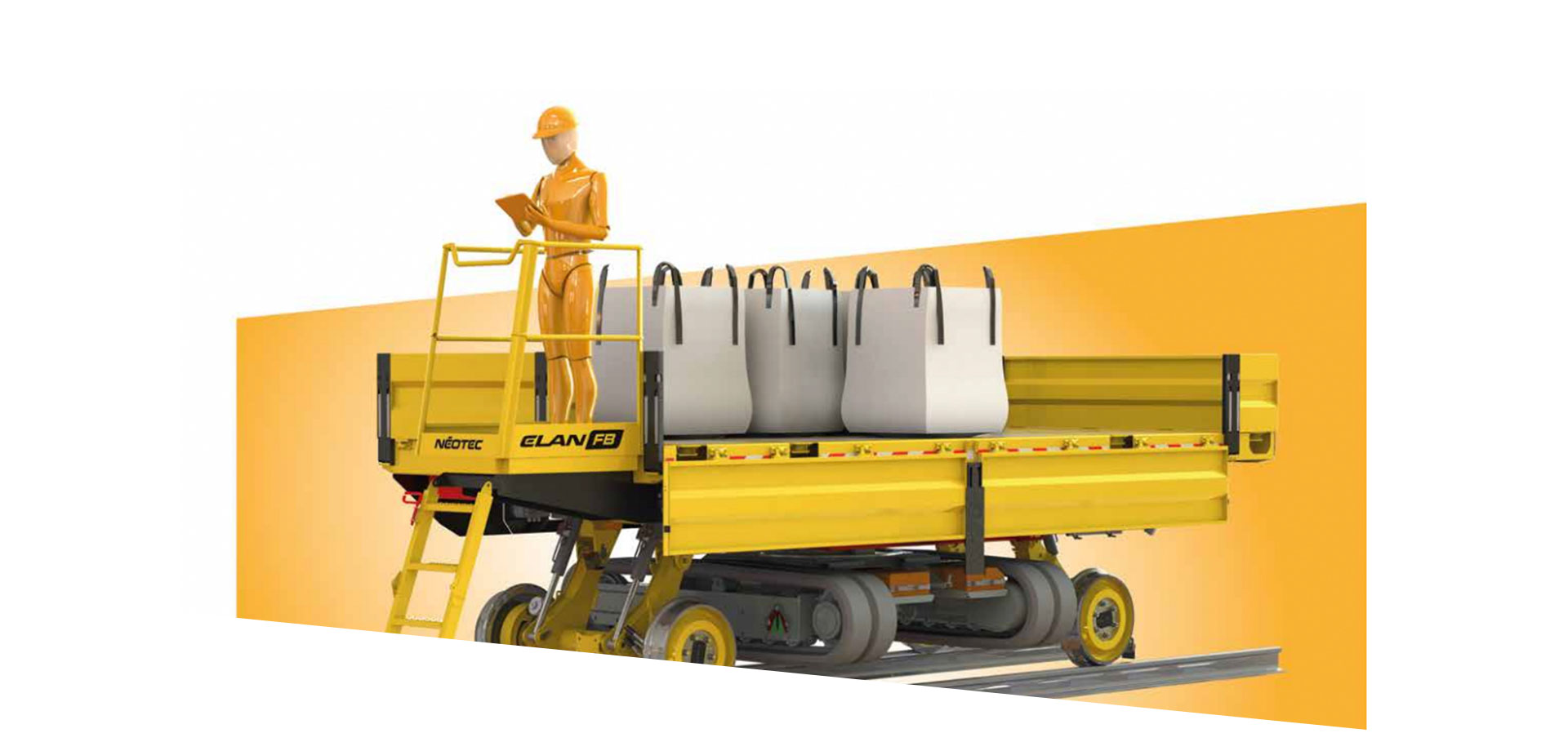

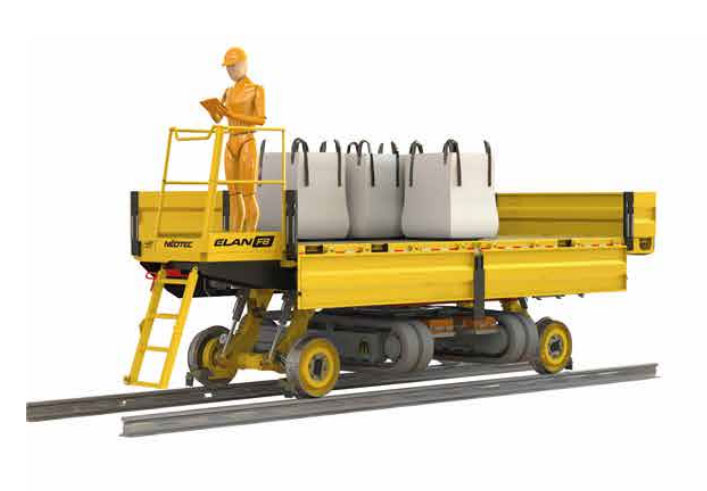

Neotec ELAN FB in Norway
The ELAN FB is a rail/road flatbed vehicle from Neotec, developed for efficient transport of equipment and materials in railway projects. With zero-emission operation in Green-e mode, flexible modules, and a range of optional features, this is a robust and practical solution for work along the tracks.
- Engine: Perkins HVO Stage V diesel engine, 18 kW
- Electric motor (option): 15 kW Green-e
- Battery: LFP 48V/200 Amp/h, zero-emission mode >10 km*
- Electric speed: up to 3.5 km/h
- Charging: 110/220 V (16 A), fast charging 50% in 45 min via diesel generator
- Off-road speed: 0–1.5 km/h
- Off-road gradeability: up to 45%
- Rail speed: inspection 5 km/h, travel 12 km/h
- Max rail gradient: 1/25 = 40 ‰ (standard), 60 ‰ (option)
- Max cant: 200 mm
- Dimensions: 5371 × 2530 mm
- Operating weight: up to 12,500 kg
- Options: 220/110V 3.5 kVA generator, handling crane 700 kg, inspection center, removable side panels, twist lock modules 10″/20″
Applications: transport and logistics in railway projects requiring a flexible flatbed solution.
