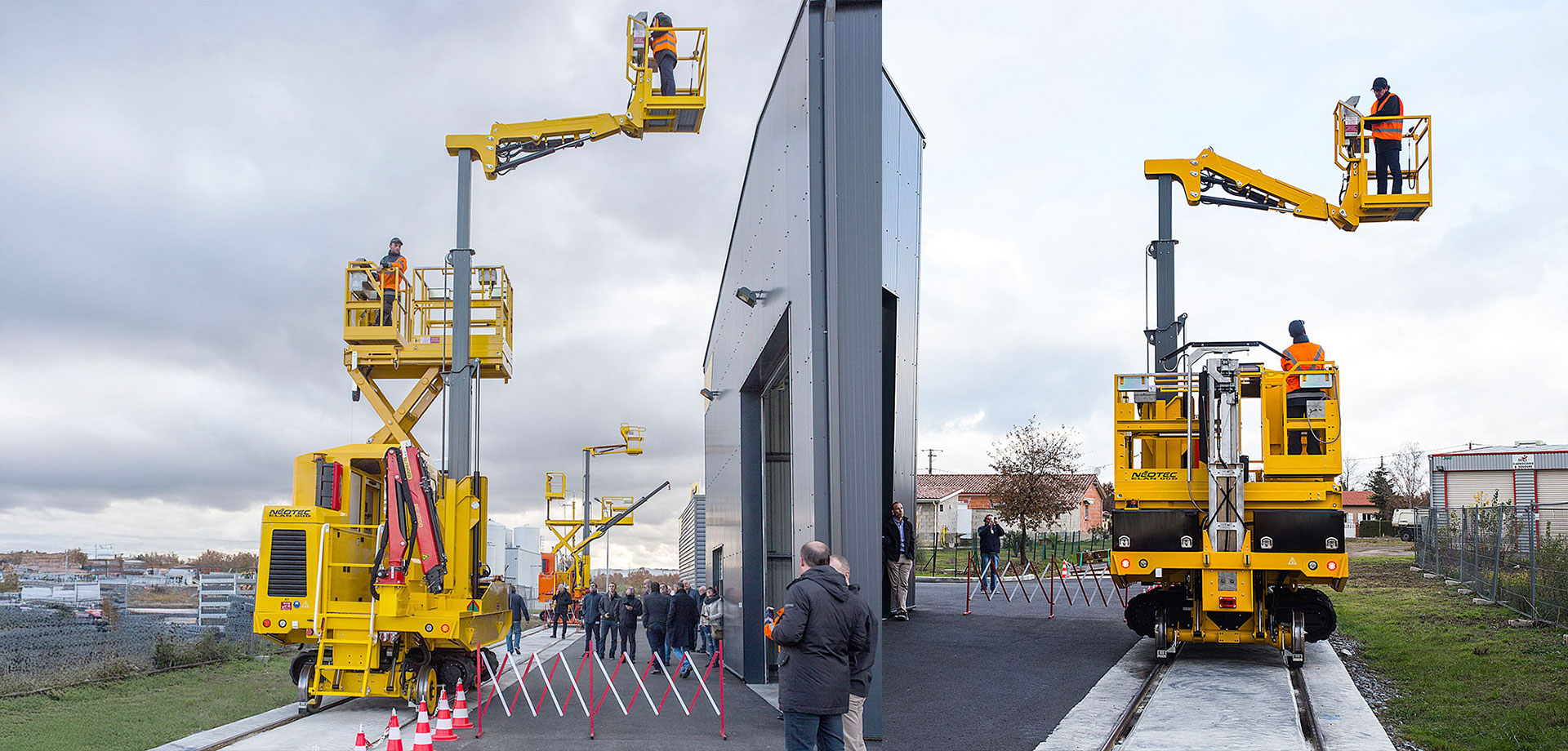

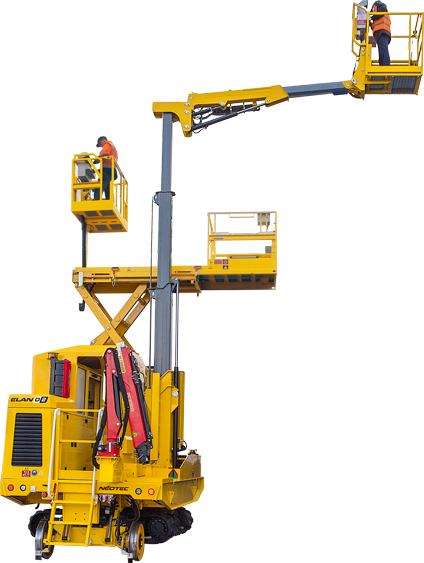

Neotec ELAN D2 Green-e in Norway
The ELAN D2, based on the key concepts of the ELAN series, offers outstanding performance and ergonomics in the category of compact, self-propelled machines. The rotating lift basket with a wide span can accommodate 2 people, increasing both efficiency and safety during work.
- Working height (platform): 8.80 m
- Outreach (platform): 3.50 m
- Platform capacity: 3 persons / 420 kg
- Working height (basket): 13.10 m
- Outreach (basket): 6.15 m
- Basket capacity: 2 persons / 230 kg
- Basket rotation range: +90° / −90°
- Engine: Perkins HVO Stage V diesel 45 kW + electric motor 15 kW (option)
- Battery: LFP 48V/200Ah, zero emissions up to 10 hours
- Charging: 110/220 V (16 A), fast charge 50% in 30 min via diesel generator
- Off-road speed: up to 1.5 km/h
- Off-road climbing ability: up to 45%
- Rail speed: up to 8.5 km/h (work), 20 km/h (travel)
- Rail climbing ability: 40 ‰ (standard), 60 ‰ (option)
- Max cant (super-elevation): 200 mm
- Wheel diameter (railway): Ø 580 mm
- Dimensions: 5371 × 2530 × 3345 mm
- Weight: from 12,000 kg
- Options: measuring mast or 700 kg handling crane
Applications: work on catenary systems, inspection, maintenance, and heavy lifting on track.
